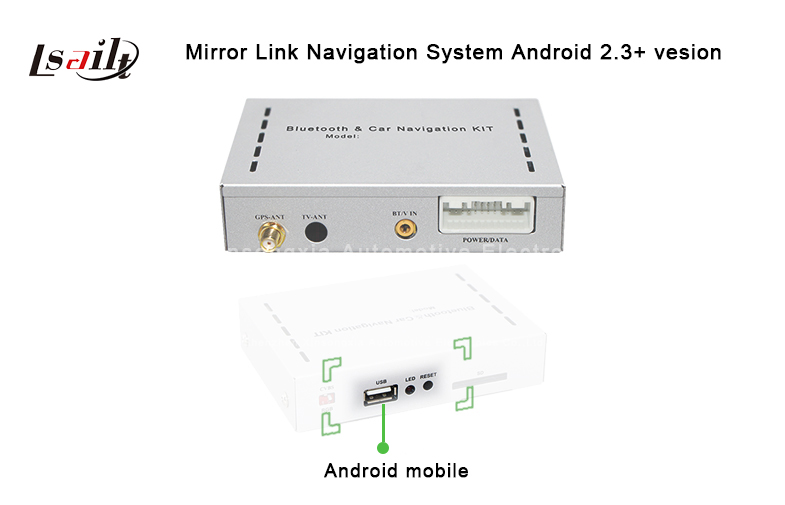

Mirror Link Navigation for XAV-701BT/65/742/602BT/63/64BT with USB
Universal product information
Origin | Shenzhen | Trademark | Lsailt |
Serial/Model NO. | LLT-SY3207 | Standard | CCC, CE |
Type | GPS Navigator/ Mirror Link | Use | Automotive |
Product Description:
1．Adopt high performance RAM11, car regular hard acceleration
processorA6Ⅱ, main frequency is 1GHZ;
2．With high capacity memory for DDR3 256M；
3．OS:WINCE6.0；
4．Support many kinds of resolutions,default 800*480；
5．Support mobile mirror link；
6. Support many kinds of navigation software.Support 3D live
navigation.With Navigation voice mixing
function, Support runs multiple maps, the highest support 32G;
7．Support touchscreen operation；
8．Support upgrade OS by TF card and U Flash Disk ；
9．Support USB 2.0 external U Flash Disk. Support external Hard
Disk；
10. Support many kinds of video formats(1080P): AVI(H.264, DIVX,
DIVX, XVID, rm, rmvb, MKV(H.264, DIVX, DIVX, XVID), WMV, MOV,
MP4(H.264, MP EG, DIVX, XVID), MPEG, MPG, FLV(H.263,H.264)；
11. Supports many audio formats
:WAVE,AIFF,AU,MP3,MIDI,WMA,RealAudio,VQF,OggVorbis,AAC,APE；
12. Equipment with Bluetooth function, providing a telephone
connection, Bluetooth music player and
other functions;
13.Design EQ sound choice function, achieve high quality music
effect.
Competitive advantages:
1. Easy installation. Nondestructive installation；
2. Random installation ,without secondary installation；
3. Simple functions, strong stability, which more useful,
4. Convenient to upgrade map.
5. Design EQ sound choice function, achieve high quality music
effect.
Product Application:
1. Car:vehicle,bus,truck；
2. Brands :Toyota, Honda, Nissan, GM, Buick, Kia, HYUNDAI etc.
3. Super auto supplies supermarket,car audio modification
store,automobile service factory
4. Apply to the car DVD host:PIONEER/KENWOOD//JVC/ALPINE/ etc.
Custom properties
CPU | 1GHZ | RAM | 256M |
Working voltage | 9-12V | OS | WINCE 6.0 |
HVGA | 800X480 | MAP | IGO/PAPAGO |
Trade Terms
Min. Order | 1Set | Unit Price | Negotiation |
Trade Terms | FOB | Payment Terms | T/T or western Union |
Supply Ability: | 3,000pcs per month | Delivery Time: | 5 working days after received your payment |
Packaging Details: | Standard export carton | HTTP | www.lsailt.com |
SIZE | 118*84*26 (MM) | GR. WT | 0.8KG/SET |
Product accessories |
Mainframe | 1(standard configuration) |
Dedicated wire | 1(standard configuration) |
Antenna | 1(standard configuration) |
USB cable | 1(standard configuration) |
Specification | 1(standard configuration) |
certification | 1(standard configuration) |
Warranty card | 1(standard configuration) |
Microphone | 1(standard configuration) |
SPK | 1(optional configuration) |
Map card | 1(optional configuration) |
Mute dedicated line | 1(optional configuration) |
Specifications |
CPU | SiRF Atlas A6Ⅱ |
Main frequency | 1GHZ |
RAM | 256M DDR3 |
Flash memory | 256Mcan expand to 8GB |
Navigation storage | SD/TF maximum 32GB |
HVGA | 800X480(RGB) |
Working voltage | DC 9-16V |
Dual Video Display | CVBS,Y/C,YPbPr,RGB |
Video out voltage | 1.0Vpp/75Ω |
Operating temperature | -40℃to +85℃ |
Storage temperature | -40℃ to +100℃ |
USB | mouse,mobile mirror link,AV display,maximum 32G |
Sound out | Dual channel CD stereo sound |
Audio playing | MP3,M4A,WAV,AMR,AWB,AAC,FLAC,MID,MIDI,XMF,RTTTL,RTX,OTA,WMA,RA, MKA,M3U |
VIDEO playing | MPG,MPEG,DAT,VOB,TS,TRP,TP,M2TS,MTS,MP4 ,MOV,RMVB,RM ,MKV,DIVX, AVI,ASF,WMV,FLV,TS,WEBM. |
Format of pictures | JPEG,JPG,GIF,PNG,BMP,WBMP. |
MAP | IGO/PAPAGO/ Careland/DaodaoTong |
Navigation sound | Voice sent back/ sound mixing e |
Sound Control | More EQ simulate control |
Balancing control |
Acoustic control |
Spectrum collection and variety shows |
