Mondeo Fusion SYNC 3 Auto Navigation System Android 7.1 WIFI BT Map
Google Service
Android 7.1 Car Navigation box Video Interface for Mondeo Fusion
SYNC 3 with WIFI BT MirrorLink map google service
Fiesta Kuga Focus Mondeo Fusion Escape Edge F-150 Expedition etc
are supported
Android apps include Youtube, Google map, Waze, music & video play
etc Rear view 360 panorama sight view DVR TMPS etc
● Support display the same video with center monitor on headrest
monitor
● Support worldwide IGO maps .
● support touch screen control
● Support Intelligent parking assist system (IPAS)
● Reverse camera auto trigger

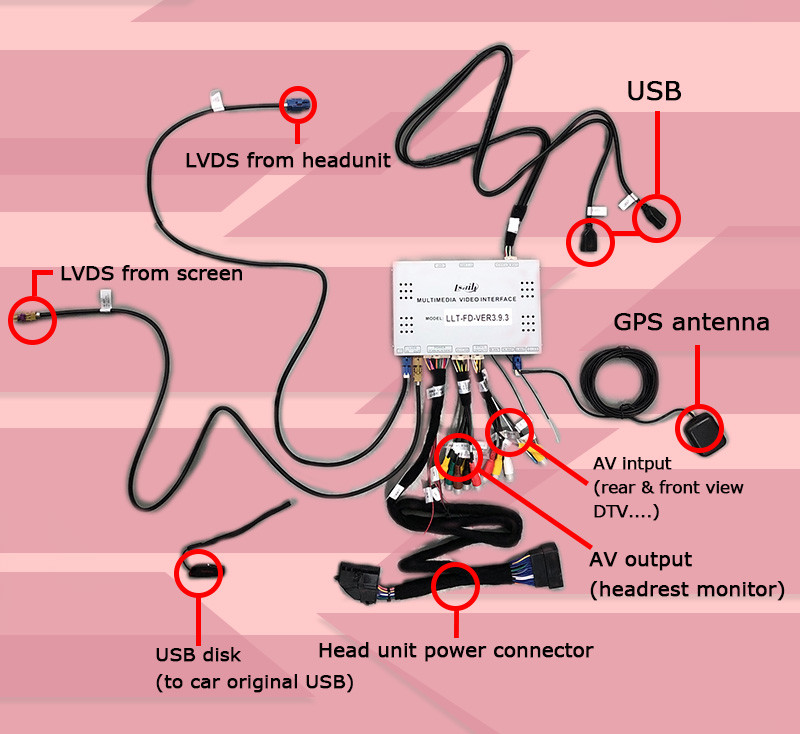

● 2 video in+2 AV in, including 2 video in for rear view camera and
front view, 2 AV IN for TV and DVD,
● External speaker for navigation and original car speaker for
multimedia
● Support USB HD 1080P multimedia playback
● Plug and play for easy installation
Android’s features:
1. Android 7.1 system, 2/3+32GB storage 6 core 1.2GHz chip.
2. Compatible all Android apps include YouTube, Waze, Google map, iGO, Real-time & offline navigation etc, free download from Google Play store.
3. Operate whole system by factory origin shift knob touchpad, touch mouse on central console, optional touch screen.
4. Compatible to car origin rear view & front view, DVR, 360 panorama, TV box, TPMS optional.
5. ADAS lane monitoring is supported with DVR.
6. Connect via Wi-Fi Bluetooth USB.
7. Could be switch to origin system with just one click on
dashboard or steering wheel.
8. Voice activate navigation, mirror link.
9. Simple plug & play installation.
10. Multi languages are supported, include English русский Français Español Português Arabic Persian Japanese
Korean Hebrew etc
11. Optional wireless carplay and android auto
Professional festures & hardware
1. Multi screen interactive display is supported, LVDS out put.
2. Accessories like rear view, 360 bird eye camera box, DVD, DVB-T
TV box, DVR, mirror link, video play via USB.
3. Support 2 RGB & LVDS video signal input.
4. HD 1080P video play supprted.
5. Voice control navigation from both factory MIC or ours.
6. Display definition 480*800.
7. Touchscreen interface: Support resistive & capacitive touch
layer
Installation advantages
1) No ndestructive installation design, which does not damage to
the wires of original car; Special interface cable, plug-up
installation without wire cut;
2) Choose installation functions freely (Bluetooth optional);
3) Technology is reliable, take the original agreement;
4) After the upgrade, it still retains all the functions of the
original host, even if navigation goes wrong, does not affect the
function of the use of the original car;
5) After-sales service is convenient, replace the adapter module
directly, compare with special machine, it's simple, less risk,
safety and reliable
6) Choose beautiful interface by yourself;
7) Achieve handwritten navigation, and control the navigation by
touching it. Compare with the original navigation module, it's more
convenient and flexible.
| Resolution | 800X480 |
| Display | LVDS Digital |
| SYSTEM: | Android OS 7.1.2 |
| RAM: | 2/3GB |
| ROM: | 32GB EMMC |
| CPU MODEL | T7 |
| WIFI: | Support |
| BT: | Support |
| MirrorLink: | From Android smartphone & iPhone |
| Microphone: | Include |
| TF Card : | For Map data |
| Navi Sound | Automatic mixing original car navigation audio with car speaker |
| Play Store: | Support |
| Youtube: | Support |
| MCU and APP Update: | System update via wifi to Internet |
| AV IN: | DTV and AV1 |
| Video OUT: | V and V1 |
| Camera: | Front/Left/Rear/Right (flexible guideline and radar ) |
| Cold start Time: | 40 seconds |
| Hot Start: | 6 seconds |
| Sleep: | Yes(Restart once after 5 times cycle sleep) |
| Sleep memory | Remember Last active APP |
| Switch Mode: | Use USB Android icon to automatically switch sound & image signal |
| Switch Mode1: | When play thel car radio or other image be shown, use the OK and
SOUND and the steering wheel OK button, long press 3 seconds switch
to Android, and short press to exit. |
| Switch Mode2: | Switch between 2 system by Android buttons on dail to select the
Android automatically. |
| Use Operation: | By Origin car Touch |
| Steering Wheel: | Support sound track & volume adjustment |
| Forced Reset | PWR button(Long press 5 seconds) |
| Original Car Onstar in Android: | Automatically back to the original car, waiting for 10 seconds back
to Android |
| Speed Control: | All cameras are effctive under 20 km/h |
| Installation Method | Plug and Play |
