GPS navigation box video interface / Chevrolet Silverado Impala
Malibu mylink system Navigation
with touch screen, wireless connection include WI-FI, BlueTooth, Mirror Link, cast screen, HD 1080P all format video play, Google MAP, Play Store, Voice command, rear or 360 all sight view.
For all Chevrolet with mylink car multimedia system since 2014!
Based on Android 9.0 Impala are fully compatible!
Compatible models:
Chevrolet
2015-2019 Suburban / Tahoe
2014-2019 Silverado
2018- Traverse
2014-2019 Colorado with mylink system
2016-2019 Impala with mylink system
2015-2018 Malibu with mylink system
2014-2018 Equinox with mylink system
Buick
2015-2019 LaCrosse with intellilink system
2015-2019 Envision with intellilink system
2015-2016 Regal with intellilink
Opel/Vauxhall
Cadillac
2014-2019 ATS with CUE system
2014-2019 CTS with CUE system
2014-2019 XTS with CUE system
2014-2019 XT5 with CUE system
2014-2016 SRX with CUE system
2015-2019 Escalade with CUE system
GMC
2014-2019 Yukon with intellilink system
2014-2019 Sierra with intellilink system
2018- Terrain with intellilink system
2014-2019 Canyon with intellilink system
Brand of manufacturer: Lsailt Model: LLT-GM-VER3.7.7
Standard Configuration: Video Interface (Trajectory Reversing,Front View, Video Input)and
Android Navigation Box;
Suitable car model: for 2016- Chevrolet Colorado etc, combine with related Chevrolet cars (Mylink system)
Upgrading Function: Touch Android Navigation System, Trajectory Reversing, Front View,
DVD, TV, 360 Panoramic, DVR, TPMS etc.
Android’s features:
1. Android 9.0 system, 4+64GB storage 6 core 1.8GHz chip.
2. Compatible all Android apps include YouTube, Waze, Google map, Yandex navi Real-time & offline
navigation etc, free download from Google Play store.
3. Operate whole system by original touch screen.
4. Compatible to car origin rear view & front view, DVR, 360 panorama, TV box, TPMS optional.

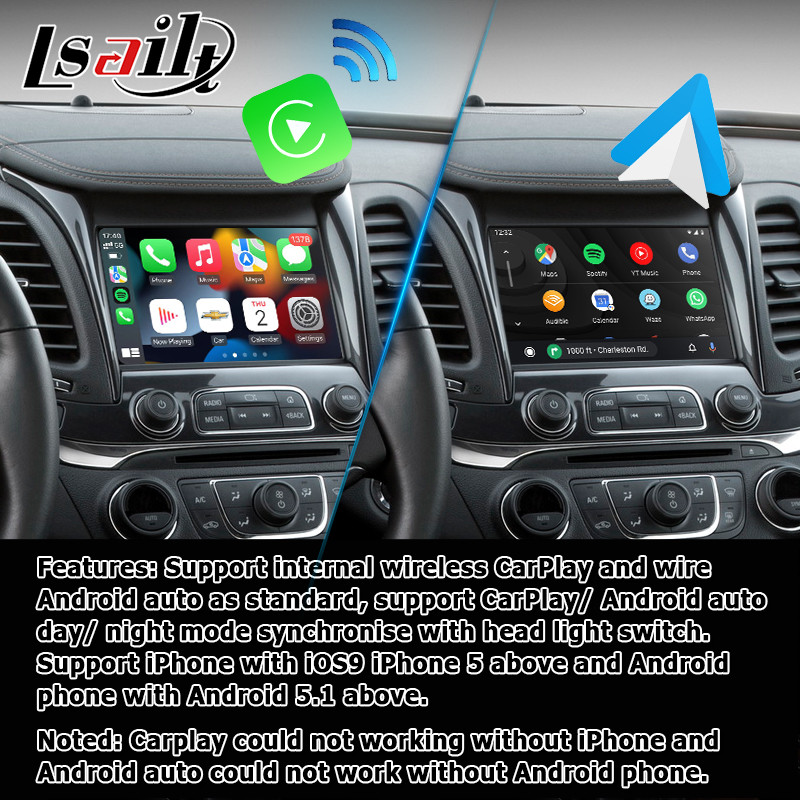

5. Wireless carplay and android auto.
6. Connect via Wi-Fi Bluetooth USB.
7. Could be switch to origin system with just one click on
dashboard or steering wheel.
8. Voice activate navigation, mirror link.
9. Simple plug & play installation.
10. Multi languages are supported, include English Pусский Français Español Português Arabic Persian Japanese Korean
Hebrew etc
Professional festures & hardware
1. Multi screen interactive display is supported, LVDS out put.
2. Accessories like rear view, 360 bird eye camera box, DVD, DVB-T
TV box, DVR, mirror link, video play via USB.
3. Support 2 HDMI video signal input.
4. 1080P video play supprted.
5. Voice control navigation from both factory MIC or ours.
6. Display definition 480*800.
7. Touchscreen interface: Support 4-wire resistive touch layer
| Resolution | 800X480 |
| Display | LVDS Digital |
| SYSTEM: | Android OS 9.0 |
| RAM: | 4GB |
| ROM: | 64GB EMMC |
| CPU MODEL | PX6 |
| WIFI: | Support |
| BT: | Support |
| MirrorLink: | From Android smartphonr & iPhone |
| Microphone: | Include |
| TF Card : | For Map data |
| Navi Sound | Coming from added speaker |
| Play Store: | Support |
| Youtube: | Support |
| MCU and APP Update: | System update via wifi to Internet |
| AV IN: | DTV and AV1 |
| Video OUT: | HDMI |
| Camera: | Front/Left/Rear/Right (flexible guideline and radar ) |
| Cold start Time: | 40 seconds |
| Hot Start: | 6 seconds |
| Sleep: | Yes(Restart once after 5 times cycle sleep) |
| Sleep memory | Remember Last active APP |
| Switch Mode: | Press and hold the house button for 3 seconds |
| Use Operation: | By Origin car Touch |
| Steering Wheel: | Support sound track & volume adjustment |
| Forced Reset | PWR button(Long press 5 seconds) |
| Original Car Onstar in Android: | Automatically back to the original car, waiting for 10 seconds back
to Android |
| Speed Control: | All cameras are effctive under 20 km/h |
| Installation Method | Plug and Play |
| Function Parameters Andrews |
| USB Function |
| USB Interface | Two-way interface,can external connect a stern line of USB HUB,USB. |
| Connect external 3G Dongle(WCDMA/CDMA2000/TD-SCDMA) |
| Maximum:64GB,support FAT/NTFS hard disk,U flash disk;compatible
USB1.0,USB2.0 |
| Audio File Format | MP3,M4A,WAV,AMR,AWB,AAC,FLAC,MID,MIDI,XMF,RTTTL,RTX,OTA,WMA,RA,MKA,M3U |
| Functions of Audio Media | Select songs from list,play, pause,the last song, the next
song,shuffle play,repeat playback,3 d effects ID3 display
information of songs |
| Format of Video File | MPG,MPEG,DAT,VOB,TS,TRP,TP,M2TS,MTS,MP4
,MOV,RMVB,RM,MKV,DIVX,AVI,ASF,WMV,FLV,TS,WEBM. |
| Functions of Video Media | Select video from list,Play, pause,the last one,the next one(Don’t
support background) |
| Format of Picture File | JPEG,JPG,GIF,PNG,BMP,WBMP |
| Functions of Picture Media | Select pictures from list,Play,pause,the last picture,the next
picture,Rotating pictures,set as wallpaper. |
|
| MAP (GPS Navigation) |
| Supportable navigation software | Beauty line,DaoDaoTong,LingTu,
hypergraph,NaviOne,AutoNavi,baidu,Google,IGO,SYGIC |
| Map Upgrading | Through TF card |
| Support 3D live navigation,(Need navigation software to support) |
| Support navigation sound mixing/sound sent back |
| Support real-time traffic(Need navigation software to
support,internet) |
| Support multiple navigation software |
| File Manager |
| Functions | Support to copy, move files between different storage medium and
different folders |
| Support to delete files |
| Task Manager |
| Functions | Support the task list of activities |
| Support to switch the activities task |
| Support to close the activities task |
| System with Google | The browser,calculator,calendar and send E-mail,Google store |
| Software Upgrading | TF or U flash disk |
| Voice Recognition | Support |
| System Language | Multi language |
Specifications of System
| CPU | BCM4752 |
| Frequency | 1575.42± 1 .023 MHz |
| Number of channels | 66 channel |
| Tracking sensitivity | -1 61dBm |
| Positioning accuracy | 3.0m CEP |
| Rate | 0.1 m/s |
| Data update rate | 1HZ |
| Re-capture time | <1S |
| Hot start time | 1S |
| Warm start time | 32S |
| Cold start time | 35S |
| Maximum positioning height | 18000m |
| Maximum rate | 515m/s |
| GPS Antenna | Active ceramic antenna |
| Antenna gain | 27dB |
| Antenna noise factor | <2dB |
| VSWR | 1 .5 |
| Antenna voltage | 3V± 5% |
| Antenna current | 1 5mA |
