Car Android Navigation System Video Interface box For Opel Insignia, Buick Regal, LaCrosse, Enclave, Chevrolet Malibu Suburban Silverado GMC Yukon Sierra etc (Cadillac CUE SYSTEM
Chevrolet Mylink system Buick opel intellink system)
Upgrade Touch Navigation, WI-FI, Bluetooth, Mirror Link, Cast screen, HD 1080P video display, high quanlity music play,
Google MAP, Play Store, Voice
Android’s features:
1. Android 9.0 system, 4+64GB storage 6 core 1.8GHz chip.
2. Compatible all Android apps include YouTube, Waze, Google map, Yandex navi Real-time & offline
navigation etc, free download from Google Play store.
3. Operate whole system by original touch screen.
4. Compatible to car origin rear view & front view, DVR, 360 panorama, TV box, TPMS optional.

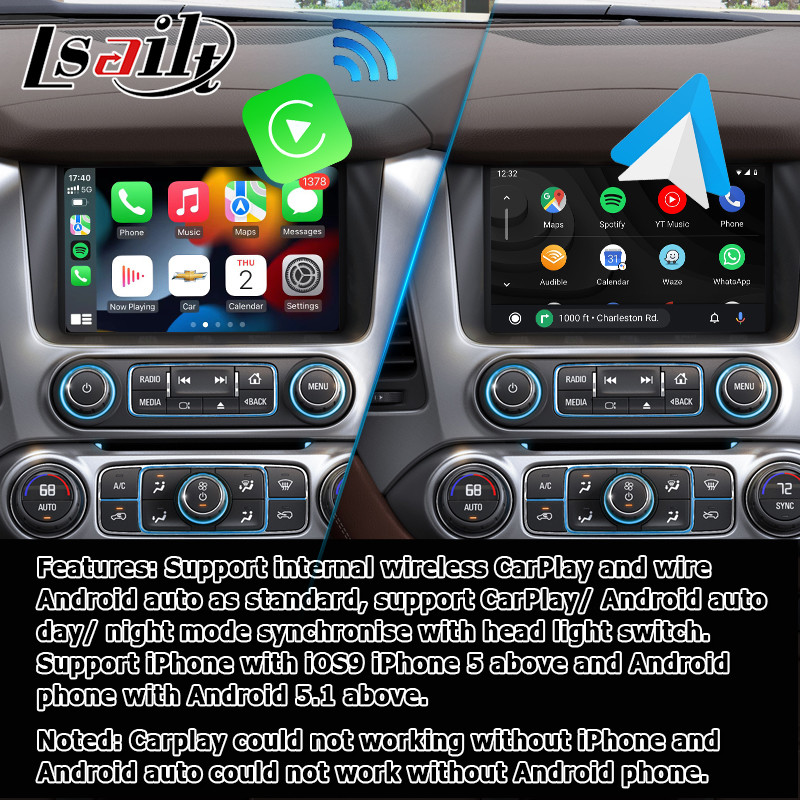

5. Wireless carplay and android auto build in.
6. Connect via Wi-Fi Bluetooth USB.
7. Could be switch to origin system with just one click on
dashboard or steering wheel.
8. Voice activate navigation, mirror link.
9. Simple plug & play installation.
10. Multi languages are supported, include English Pусский Français Español Português Arabic Persian Japanese Korean
Hebrew etc
Professional festures & hardware
1. Multi screen interactive display is supported, LVDS out put.
2. Accessories like rear view, 360 bird eye camera box, DVD, DVB-T
TV box, DVR, mirror link, video play via USB.
3. Support 2 HD RGB & LVDS video signal input.
4. 1080P video play supprted.
5. Voice control navigation from both factory MIC or ours.
6. Display definition 480*800.
7. Touchscreen interface: Support 4-wire resistive touch layer
| Resolution | 800X480 | | Display | LVDS Digital | | SYSTEM: | Android OS 9.0 | | RAM: | 4GB | | ROM: | 64GB EMMC | | CPU MODEL | PX6 | | WIFI: | Support | | BT: | Support | | MirrorLink: | From Android smartphonr & iPhone | | Microphone: | Include | | TF Card : | For Map data | | Navi Sound | Coming from added speaker | | Play Store: | Support | | Youtube: | Support | | MCU and APP Update: | System update via wifi to Internet | | AV IN: | DTV and AV1 | | Video OUT: | HDMI | | Camera: | Front/Left/Rear/Right (flexible guideline and radar ) | | Cold start Time: | 40 seconds | | Hot Start: | 6 seconds | | Sleep: | Yes(Restart once after 5 times cycle sleep) | | Sleep memory | Remember Last active APP | | Switch Mode: | Press and hold the house button for 3 seconds | | Use Operation: | By Origin car Touch | | Steering Wheel: | Support sound track & volume adjustment | | Forced Reset | PWR button(Long press 5 seconds) | | Original Car Onstar in Android: | Automatically back to the original car, waiting for 10 seconds back
to Android | | Speed Control: | All cameras are effctive under 20 km/h | | Installation Method | Plug and Play |
|
Applications
1.Vehicle:Original car with screen models;
4.Suitable for car Brand: Opel, BUICK Regal, Lacrosse, Enclave,
Chevrolet malibu (Car CUE SYSTEM)
3.Sales channels:Super auto supplies supermarket,car audio
modification store,automobile service factory,standard 4S shop;
4.Suitable type:Original car with screen,support for touch
control,HD display models.
| Function Parameters Andrews |
| Internet |
| WIFI | After good Wi-Fi connection,select the current can be connected
Wi-Fi hotspots,enter the password to connect to the Internet after
the Internet
Via your 5G/4G mobile phone can also be used as hot provide
navigation hosts (this set with reference to your mobile phone
manual) |
| 3G | 3G/WCDMA/CDMA2000/TD-SCDMA standard |
| Support surf the Internet through 3G USB dongle or 3G mobile share
next work |
| MAP (GPS Navigation) |
| Supportable navigation software | Beauty line,DaoDaoTong,LingTu,
hypergraph,NaviOne,AutoNavi,baidu,Google,IGO,SYGIC |
| Map Upgrading | Through TF card |
| Support 3D live navigation,(Need navigation software to support) |
| Support navigation sound mixing/sound sent back |
| Support real-time traffic(Need navigation software to
support,internet) |
| Support multiple navigation software |
| Task Manager |
| Functions | Support the task list of activities |
| Support to switch the activities task |
| Support to close the activities task |
| System with Google | The browser,calculator,calendar and send E-mail,Google store |
| Software Upgrading | TF or U flash disk |
| Voice Recognition | Support |
| System Language | Multi language |
